2902520000 | Weidmüller

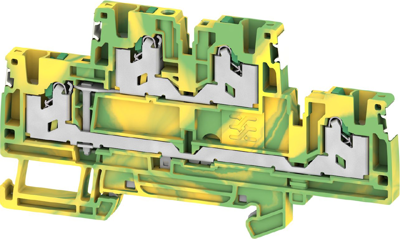

Protective conductor terminal, snap-in, 0.34-2.5 mm², 4 pole, 8 kV, green/yellow, 2902520000
Unit Price (€ / pc.)
8.2663 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
8.27 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2663 €
10 pcs.
7.7152 €
50 pcs.
7.2330 €
100 pcs.
6.8075 €
*incl. VAT plus shipping costs
Subject to prior sale
Multi-tier modular terminal, 2902520000, Weidmüller
Multi-tier PE terminal, SNAP IN, Green/yellow, 2.5 mm², 800 V, Number of connections: 4, Number of levels: 2, TS 35, V-0, Wemid.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green/yellow | |
| Number of terminals | 4 | |
| Width | 5.1 mm | |
| Connection | snap-in | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 22 to 12 | |
| Pin number | 4 pole | |
| Rated Voltage | 800 V | |
| Version | multi-level protective conductor terminal block | |
| Cable cross-section | 0.34-2.5 mm² | |
| Height | 95 mm | |
| Length | 52 mm | |
| Rated surge voltage | 8 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
