2847590000 | Weidmüller
Protective conductor terminal, push-in connection, 0.14-2.5 mm², 2 pole, 8 kV, green/yellow, 2847590000
Unit Price (€ / pc.)
3.6771 € *
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
3.68 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6771 €
10 pcs.
3.4153 €
50 pcs.
3.1892 €
100 pcs.
2.9869 €
*incl. VAT plus shipping costs
Subject to prior sale

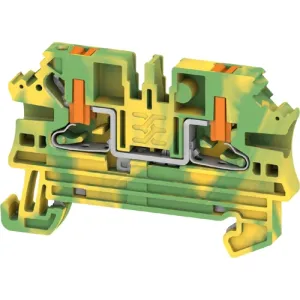

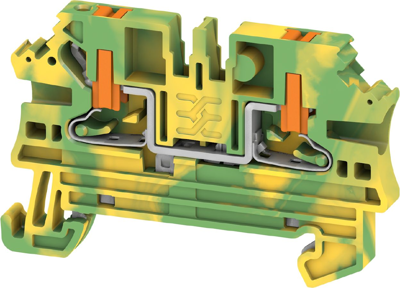

Protective conductor terminal block, 2847590000, Weidmüller
PE terminal, PUSH IN, Green/yellow, 2.5 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 12 | |
| Length | 36.5 mm | |
| Number of terminals | 2 | |
| Height | 57 mm | |
| Colour | green/yellow | |
| Rated surge voltage | 8 kV | |
| Width | 5.1 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Pin number | 2 pole | |
| Version | protective conductor terminal | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.14-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
