2815620000 | Weidmüller

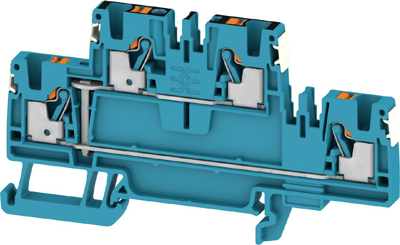

Multi level terminal block, push-in connection, 0.5-4.0 mm², 4 pole, 24 A, 8 kV, blue, 2815620000
Unit Price (€ / pc.)
5.5038 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
5.50 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5038 €
10 pcs.
5.1368 €
50 pcs.
4.8158 €
100 pcs.
4.5325 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal, 2815620000, Weidmüller
Feed-through terminal, Double-tier terminal, PUSH IN, 2.5 mm², 800 V, 24 A, blue.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 12 | |
| Length | 50.5 mm | |
| Rated current | 24 A | |
| Number of terminals | 4 | |
| Height | 64 mm | |
| Colour | blue | |
| Rated surge voltage | 8 kV | |
| Width | 5.1 mm | |
| Connection | push-in connection | |
| Pin number | 4 pole | |
| Version | multi level terminal block | |
| Rated Voltage | 800 V | |
| Cable cross-section | 0.5-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
