2508220000 | Weidmüller
Through terminal block, push-in connection, 1.5 mm², 17.5 A, 6 kV, light gray, 2508220000
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
10 pcs.
0.9996 €
50 pcs.
0.9282 €
100 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

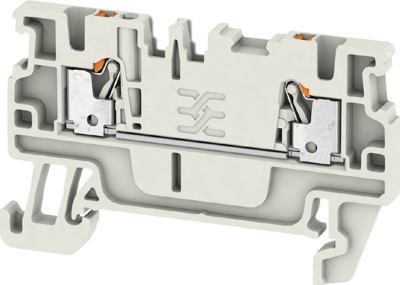

Feed-through terminal block, 2508220000, Weidmüller
Terminal block for connecting or joining conductors with permanently secure contact. Hardened steel withstands mechanical forces, tin-coated copper ensures optimum conductivity.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 500 V | |
| Number of terminals | 2 | |
| Height | 55 mm | |
| Colour | light gray | |
| Degree of soiling | 3 | |
| Rated current | 17.5 A | |
| Cable cross-section | 1.5 mm² | |
| Version | through terminal block | |
| Connection | push-in connection | |
| AWG cross-section | AWG 26 to 14 | |
| Width | 3.5 mm | |
| Rated surge voltage | 6 kV | |
| Length | 33.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
