2508200000 | Weidmüller
Through terminal block, push-in connection, 0.5-1.5 mm², 2 pole, 17.5 A, 6 kV, brown, 2508200000
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
500 pcs.
0.8925 €
2500 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale

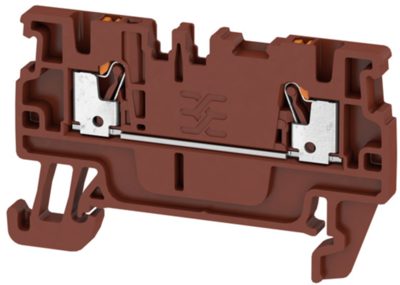

Feed-through terminal, 2508200000, Weidmüller
Feed-through modular terminal block, PUSH IN, 1.5 mm², 500 V, 17.5 A, number of connections: 2, TS 35, brown
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 2 | |
| Version | through terminal block | |
| AWG cross-section | AWG 26 to 14 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 3.5 mm | |
| Colour | brown | |
| Height | 55 mm | |
| Length | 33.5 mm | |
| Cable cross-section | 0.5-1.5 mm² | |
| Rated current | 17.5 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
