1753280000 | Weidmüller
Through terminal block, screw connection, 0.5-1.5 mm², 2 pole, 17.5 A, 4 kV, dark beige, 1753280000
Unit Price (€ / pc.)
1.9278 € *
Available: 85 pcs.
Available in 6 Days: 500 pcs.
Leadtime: On Request **
Total Price:
1.93 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9278 €
10 pcs.
1.7612 €
50 pcs.
1.6065 €
100 pcs.
1.4518 €
*incl. VAT plus shipping costs
**Subject to prior sale

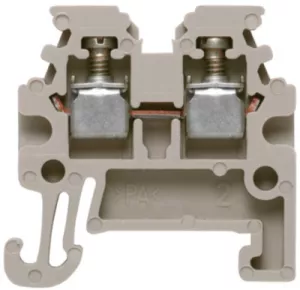

Feed-through terminal, 1753280000, Weidmüller
Feed-through terminal block, screw connection, 1.5 mm², 400 V, 17.5 A, number of connections: 2, TS 15, dark beige
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Version | through terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.5-1.5 mm² | |
| AWG cross-section | AWG 26 to 14 | |
| Rated surge voltage | 4 kV | |
| Rated current | 17.5 A | |
| Rated Voltage | 400 V | |
| Degree of soiling | 3 | |
| Length | 24 mm | |
| Width | 3.5 mm | |
| Height | 24.5 mm | |
| Connection | screw connection | |
| Colour | dark beige |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
