1319080000 | Weidmüller

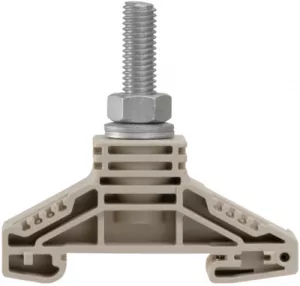

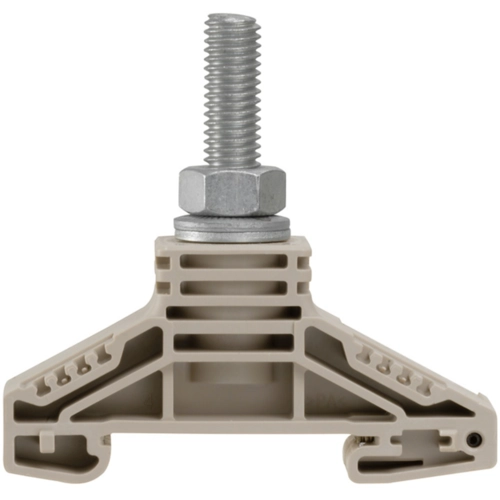

Bolt terminal, bolt connection, 120 mm², 1 pole, 269 A, 8 kV, dark beige, 1319080000
Order No.: 51P1242
EAN: 4050118317220
MPN:
1319080000
WF 12/32
Unit Price (€ / pc.)
13.5184 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Bolt clamp, 1319080000, Weidmüller
Bolt clamp, bolt connection, 120 mm², 1000 V, 269 A, number of connections: 1, M 12, TS 32, dark beige
Clamp with threaded bolt for the transmission of energy. The conductors are connected to the threaded bolt with crimped cable lugs.
Technical specifications
| Connection | bolt connection | |
| Number of terminals | 1 | |
| Version | Bolt terminal | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 32 mm | |
| Colour | dark beige | |
| Height | 67 mm | |
| Length | 77 mm | |
| Cable cross-section | 120 mm² | |
| Rated current | 269 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
