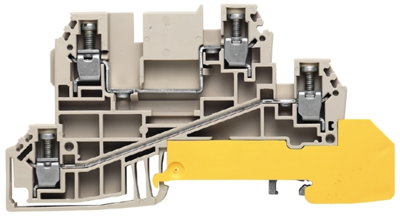

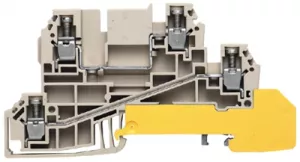

1030200000 | Weidmüller
Multi level terminal block, screw connection, 0.5-4.0 mm², 24 A, 4 kV, dark beige, 1030200000
Unit Price (€ / pc.)
4.7243 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Double-tier terminal, 1030200000, Weidmüller
Double-tier terminal block, screw connection, 2.5 mm², 400 V, 24 A, number of levels: 3, dark beige
Clamp for space-saving connection or the connection of wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Colour | dark beige | |
| AWG cross-section | AWG 26 to 12 | |
| Rated current | 24 A | |
| Width | 6.1 mm | |
| Height | 90 mm | |
| Length | 48 mm | |
| Cable cross-section | 0.5-4.0 mm² | |
| Number of terminals | 5 | |
| Version | multi level terminal block | |
| Connection | screw connection | |
| Degree of soiling | 3 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 4 kV |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
