1024780000 | Weidmüller

Through terminal block, screw connection, 0.5-4.0 mm², 1 pole, 24 A, 8 kV, blue, 1024780000

Order No.: 50P2982
EAN: 4008190173586
MPN:
1024780000
WDU 2.5/1.5/ZR BL
Series: W-Reihe
Weidmüller

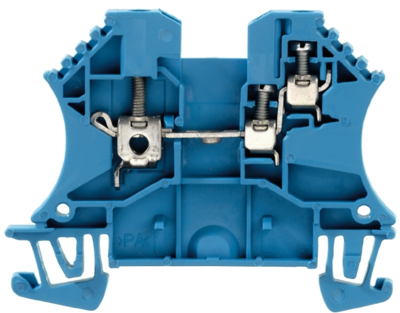

1024780000 Weidmüller Series Terminals
Image may differ
Unit Price (€ / pc.)
1.9754 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.9754 €

Feed-through terminal, 1024780000, Weidmüller

Feed-through terminal block, screw connection, 2.5 mm², 800 V, 24 A, number of connections: 1, TS 35, blue

Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.

Technical specifications
Connection screw connection
Number of terminals 1
Version through terminal block
AWG cross-section AWG 30 to 12
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 5.1 mm
Colour blue
Height 60 mm
Length 46.5 mm
Cable cross-section 0.5-4.0 mm²
Rated current 24 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin CZ
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
