0460360000 | Weidmüller

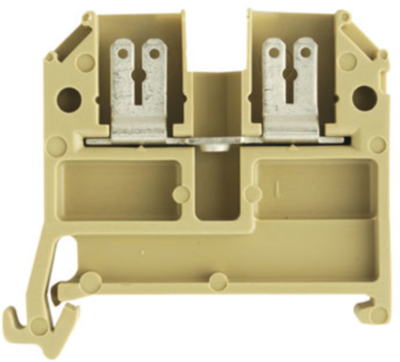

Through terminal block, plug-in connection, 0.5-4.0 mm², 2 pole, 20 A, 6 kV, beige/yellow, 0460360000
Unit Price (€ / pc.)
2.4752 € *
Available: 0 pcs.
Leadtime: 1 Week **
Feed-through terminal, 0460360000, Weidmüller
Feed-through modular terminal block, blade terminal, 2.5 mm², 500 V, 20 A, number of connections: 2, TS 35, beige/yellow.
Clamp for connecting or joining wires, cores and cables with permanently safe contact. Hardened steel for the mechanical forces and high-quality copper with tin coating ensure the best conductivity.
Technical specifications
| Colour | beige/yellow | |
| Rated current | 20 A | |
| Width | 6.1 mm | |
| Height | 40 mm | |
| Length | 40.1 mm | |
| Cable cross-section | 0.5-4.0 mm² | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Version | through terminal block | |
| Connection | plug-in connection | |
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
