2423930000 | Weidmüller

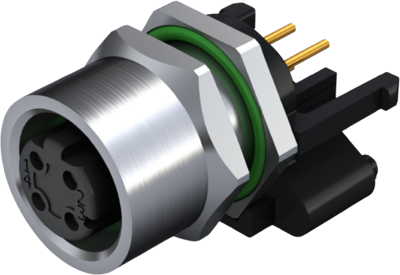

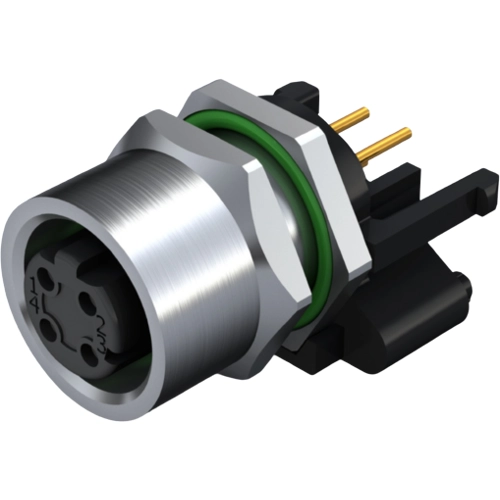

Socket, M12, 4 pole, solder connection, straight, 2423930000
Order No.: 53P0880
EAN: 4050118432060
MPN:
2423930000
SAIE-M12BB-4-H10TL
Unit Price (€ / pc.)
14.9107 € *
Available: 0 pcs.
Available in 6 Days: 50 pcs.
Leadtime: On Request **
Total Price:
14.91 € *
Price list
Quantity
Price per unit*
1 pcs.
14.9107 €
10 pcs.
13.8754 €
50 pcs.
12.7687 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor-actuator connector, 2423930000, WEIDMÜLLER
Features
- Shielded
- Contact material: CuZn
- Pollution degree: 3
- B-coded
- Degree of protection: IP67
- Rear panel mounted
Technical specifications
| Version | socket | |
| Thread size | M12 | |
| Coding | B | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | rear mounting | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
