1924970000 | Weidmüller

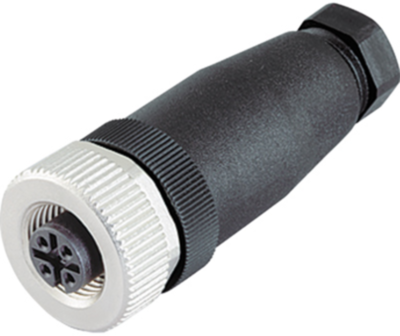

Socket, M12, 5 pole, tension clamp connection, straight, 1924970000
Order No.: 52P6063
EAN: 4032248565771
MPN:
1924970000
SAIB-5/7-ZF
Unit Price (€ / pc.)
22.2411 € *
Available: 0 pcs.
Available in 6 Days: 5 pcs.
Leadtime: On Request **
Total Price:
22.24 € *
Price list
Quantity
Price per unit*
1 pcs.
22.2411 €
10 pcs.
20.6822 €
50 pcs.
19.0281 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor-actuator connector, 1924970000, WEIDMÜLLER
Features
- Unshielded
- Pollution degree: 3
- A-coded
- Degree of protection: IP67
Technical specifications
| Version | socket | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | tension clamp connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Imidazolidine-2-thione (2-imidazoline-2-thiol) |
