1812470000 | Weidmüller

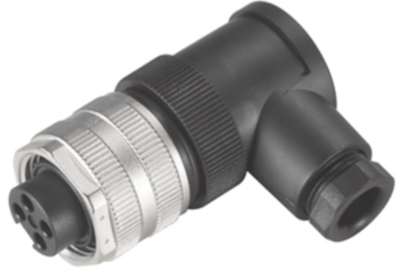

Socket, 7/8, 4 pole, screw connection, angled, 1812470000

Order No.: 52P2191
EAN: 4032248294510
MPN:
1812470000
SAIBW-4/9-7/8"
Series: SAIBW
1812470000 Weidmüller Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
52.9550 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
52.96 € *
Price list
Quantity
Price per unit*
1 pcs.
52.9550 €
5 pcs.
50.8368 €
10 pcs.
48.2902 €
25 pcs.
45.8745 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 1812470000, WEIDMÜLLER

Features

  • Unshielded
  • Pollution degree: 3
  • Contact material: CuZn
  • Degree of protection: IP67
Technical specifications
contact surface gold-plated
Orientation angled
Assembly cable assembly
Pin number 4 pole
Product type socket
Thread size 7/8
Degree of protection (IP) IP67
Contact connection screw connection
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Imidazolidine-2-thione (2-imidazoline-2-thiol), Lead
RoHS conform Yes
SVHC free No
