1291940000 | Weidmüller

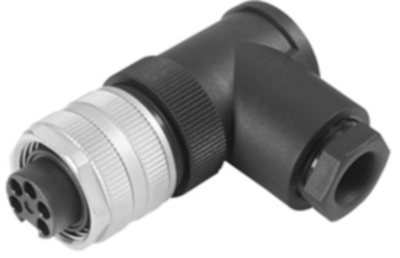

Jack, 7/8, 3 pole, screw connection, angled, 1291940000
Unit Price (€ / pc.)
37.9967 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
38.00 € *
Price list
Quantity
Price per unit*
1 pcs.
37.9967 €
10 pcs.
35.3311 €
25 pcs.
32.5108 €
50 pcs.
29.5834 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 1291940000, WEIDMÜLLER
Features
- Unshielded
- Pollution degree: 3
- Contact material: CuZn
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Thread size | 7/8 | |
| Orientation | angled | |
| Product type | jack | |
| Assembly | cable assembly | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
