8000072456 | Weidmüller
Pin header, 10 pole, pitch 5 mm, straight, black, 8000072456
Unit Price (€ / pc.)
3.2130 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2130 €
10 pcs.
2.9750 €
50 pcs.
2.7727 €
100 pcs.
2.5942 €
*incl. VAT plus shipping costs
Subject to prior sale

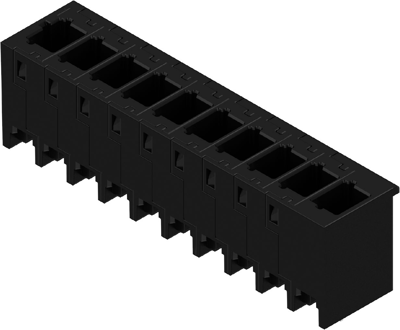

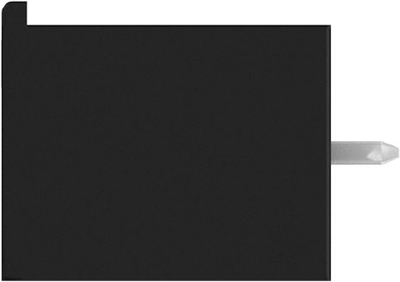

PCB plug-in connector, 8000072456, WEIDMÜLLER

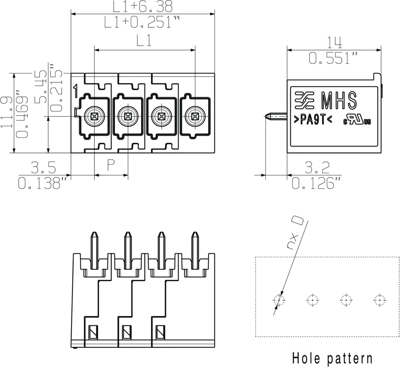

PCB plug-in connector, male header, THT/THR solder connection, Pitch in mm (P): 5.00 mm, Number of poles: 10, 180°.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Grid | 5 mm | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Rated current | 25.3 A | |
| Connection | solder connection | |
| Version | pin header | |
| Orientation | straight | |
| Pin number | 10 pole | |
| Contact type | pin | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
Signal word
| Property | Value |
|---|---|
| Gefahrenpiktogramme | |
| Information on dangerous goods | Signal word: WarningHazard statements:
Precautionary statements:
Supplemental Hazard |
