2431480000 | Weidmüller

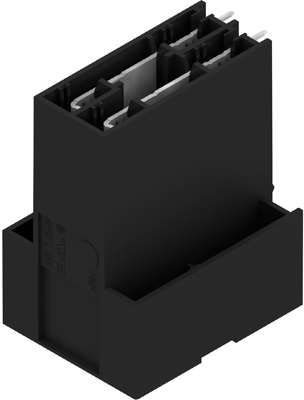

Pin header, 4 pole, pitch 7.62 mm, angled, black, 2431480000
Order No.: 50P0995
EAN: 4050118440997
MPN:
2431480000
SVD 7.62HP/04/270F 4.5SN BK BX
Unit Price (€ / pc.)
5.2717 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.27 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2717 €
10 pcs.
4.9385 €
50 pcs.
4.6529 €
100 pcs.
4.4506 €
*incl. VAT plus shipping costs
Subject to prior sale
Male header, 2431480000, Weidmüller
Double-row high-current, high-performance pin headers, with or without flange, for fast, tool-free locking. Optimised for “book-size modules” measuring 50mm wide and above. With integrated mounting option for mounting to the housing wall. Exceptional reliability and operational safety thanks to 100% failsafe mating profile, unique coding and optional additional screw mounting in the flange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Rated current | 47 A | |
| contact surface | tin-plated | |
| Orientation | angled | |
| Number of rows | 2 | |
| Rated voltage | 1 kV | |
| Pin number | 4 pole | |
| Version | pin header | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
