1844390000 | Weidmüller

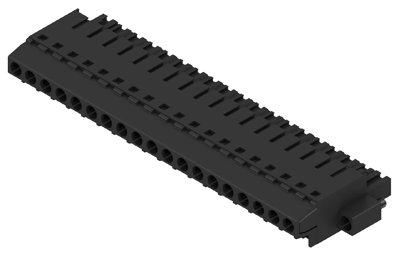

Socket header, 19 pole, pitch 5.08 mm, straight, black, 1844390000

Order No.: 50P4991
EAN: 4032248356324
MPN:
1844390000
BLT 5.08HC/19/180F SN BK BX
1844390000 Weidmüller PCB Connection Systems Image 1
1844390000 Weidmüller PCB Connection Systems Image 2
1844390000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
27.2748 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
27.27 € *
Price list
Quantity
Price per unit*
1 pcs.
27.2748 €
10 pcs.
25.5731 €
25 pcs.
24.0737 €
50 pcs.
22.7290 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1844390000, Weidmüller

Female plugs with TOP screw connection system for connecting wires with straight outlet direction and screw flange. The female connectors provide space for labelling and can be coded.

Technical specifications
Filter Property Value
Version socket header
contact surface tin-plated
Rated voltage 400 V
Orientation straight
Number of rows 1
Rated current 27 A
Colour black
Contact type socket
Pin number 19 pole
Grid 5.08 mm
Connection clamp connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
