1844260000 | Weidmüller

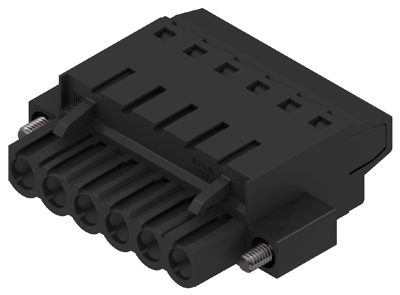

Socket header, 6 pole, pitch 5.08 mm, straight, black, 1844260000
Order No.: 50P4892
EAN: 4032248356195
MPN:
1844260000
BLT 5.08HC/06/180F SN BK BX
Unit Price (€ / pc.)
9.6866 € *
Available in 6 Days: 210 pcs. - if ordered today
Total Price:
9.69 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6866 €
10 pcs.
9.0321 €
50 pcs.
8.4609 €
100 pcs.
7.9492 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1844260000, Weidmüller
Female plugs with TOP screw connection system for connecting wires with straight outlet direction and screw flange. The female connectors provide space for labelling and can be coded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | tin-plated | |
| Pin number | 6 pole | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 5.08 mm | |
| Number of rows | 1 | |
| Connection | clamp connection | |
| Rated current | 27 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
