1844230000 | Weidmüller
Socket header, 3 pole, pitch 5.08 mm, straight, black, 1844230000
Order No.: 50P4868
EAN: 4032248356164
MPN:
1844230000
BLT 5.08HC/03/180F SN BK BX
Unit Price (€ / pc.)
5.0575 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.06 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0575 €
10 pcs.
4.7124 €
50 pcs.
4.4149 €
100 pcs.
4.1531 €
*incl. VAT plus shipping costs
Subject to prior sale

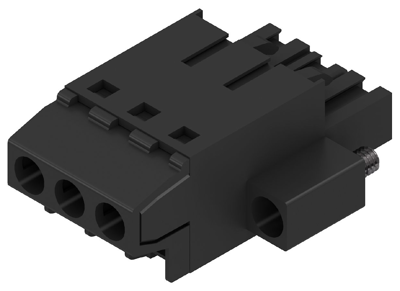

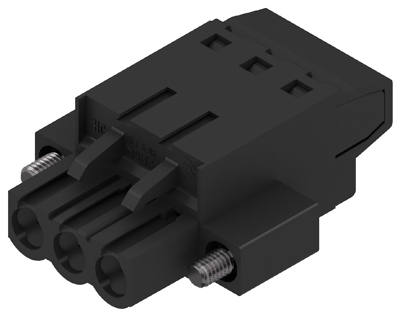

PCB plug-in connector, 1844230000, Weidmüller
Female plugs with TOP screw connection system for connecting wires with straight outlet direction and screw flange. The female connectors provide space for labelling and can be coded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | clamp connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 3 pole | |
| Colour | black | |
| Version | socket header | |
| Rated current | 27 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
