1844220000 | Weidmüller

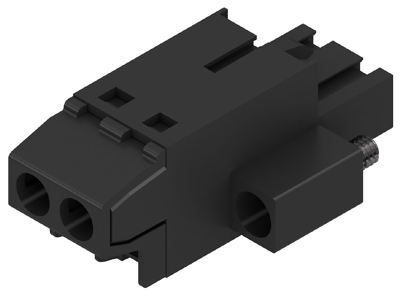

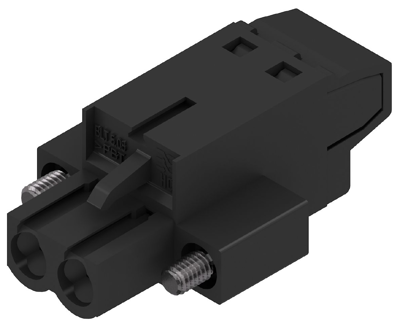

Socket header, 2 pole, pitch 5.08 mm, straight, black, 1844220000
Order No.: 50P4862
EAN: 4032248356140
MPN:
1844220000
BLT 5.08HC/02/180F SN BK BX
Unit Price (€ / pc.)
3.8675 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.5819 €
50 pcs.
3.3320 €
100 pcs.
3.1178 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1844220000, Weidmüller
Female plugs with TOP screw connection system for connecting wires with straight outlet direction and screw flange. The female connectors provide space for labelling and can be coded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | clamp connection | |
| Rated current | 27 A | |
| Pin number | 2 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Version | socket header | |
| Rated voltage | 400 V | |
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
