1793690000 | Weidmüller
Pin header, 16 pole, pitch 3.81 mm, straight, green, 1793690000
Order No.: 50P0088
EAN: 4032248230815
MPN:
1793690000
SC 3.81/16/180G 3.2SN GN BX
Unit Price (€ / pc.)
4.4387 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.44 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4387 €
10 pcs.
4.1293 €
50 pcs.
3.8556 €
100 pcs.
3.6057 €
*incl. VAT plus shipping costs
Subject to prior sale

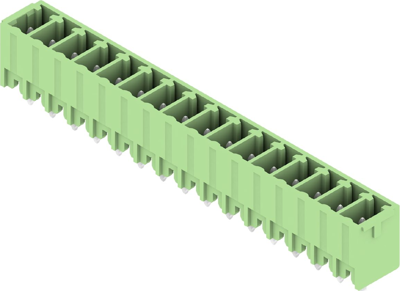

PCB plug-in connector, 1793690000, Weidmüller
PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 16, 180°, Solder pin length (l): 3.2 mm, tinned, Pale green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Pin number | 16 pole | |
| Type of locking | No | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Number of rows | 1 | |
| Connection | solder connection | |
| Rated current | 17.5 A | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
