1726840000 | Weidmüller
Pin header, 24 pole, pitch 5.08 mm, straight, orange, 1726840000
Order No.: 50P4183
EAN: 4032248062720
MPN:
1726840000
SLD 5.08V/24/180B 3.2SN OR BX
Unit Price (€ / pc.)
10.6386 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
10.64 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6386 €
10 pcs.
9.9127 €
50 pcs.
9.2820 €
100 pcs.
8.7346 €
*incl. VAT plus shipping costs
Subject to prior sale

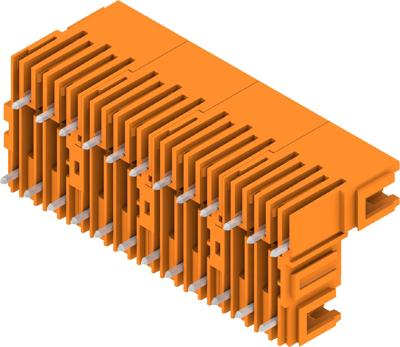

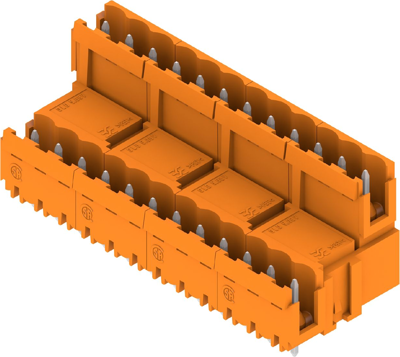

PCB plug-in connector, 1726840000, WEIDMÜLLER
PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.08 mm, Number of poles: 24, 180°, Solder pin length (l): 3.2 mm, tinned, orange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 24 pole | |
| Colour | orange | |
| Version | pin header | |
| Rated current | 14 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
