1645240000 | Weidmüller

Pin header, 3 pole, pitch 5.08 mm, straight, black, 1645240000

Order No.: 50P5836
EAN: 4008190284459
MPN:
1645240000
SLS 5.08/03/180B SN BK BX

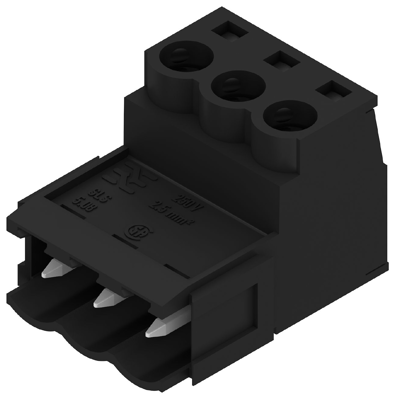

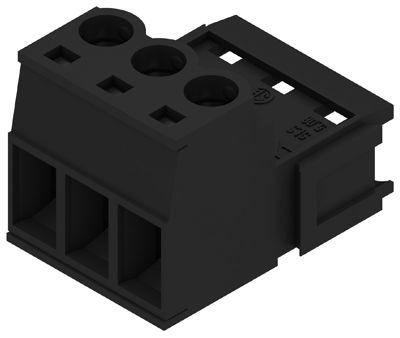

1645240000 Weidmüller PCB Connection Systems Image 1
1645240000 Weidmüller PCB Connection Systems Image 2
1645240000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.7013 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.70 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7013 €
10 pcs.
2.4990 €
50 pcs.
2.3324 €
100 pcs.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1645240000, Weidmüller

Male plug with clamping-yoke screw wire-connection system. The male plug provides space for labelling and can be coded.

Technical specifications
Filter Property Value
Colour black
Connection pull-bar connection
Rated current 21.5 A
Orientation straight
Rated voltage 400 V
contact surface tin-plated
Contact type pin
Version pin header
Grid 5.08 mm
Number of rows 1
Pin number 3 pole
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
