1626310000 | Weidmüller
Pin header, 17 pole, pitch 5 mm, angled, black, 1626310000
Order No.: 50P3615
EAN: 4008190197612
MPN:
1626310000
SL 5.00/17/90B 4.5SN BK BX
Unit Price (€ / pc.)
4.6529 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.65 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6529 €
10 pcs.
4.3078 €
50 pcs.
4.0103 €
100 pcs.
3.7485 €
*incl. VAT plus shipping costs
Subject to prior sale

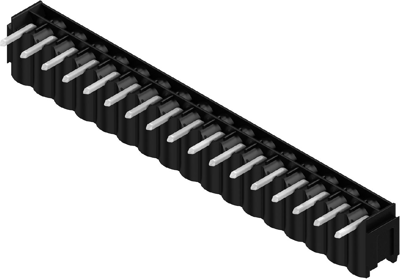

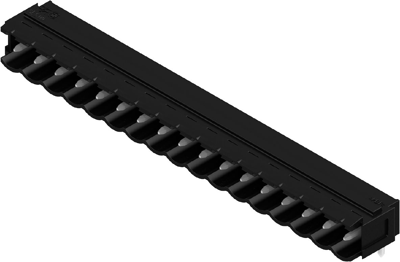

PCB plug-in connector, 1626310000, WEIDMÜLLER
PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.00 mm, Number of poles: 17, 90°, Solder pin length (l): 4.5 mm, tinned, black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Pin number | 17 pole | |
| Colour | black | |
| Contact type | pin | |
| Rated current | 18 A | |
| Version | pin header | |
| Connection | solder connection | |
| Number of rows | 1 | |
| Rated voltage | 400 V | |
| contact surface | tin-plated | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
