1618190000 | Weidmüller

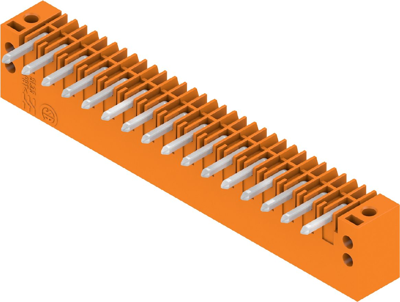

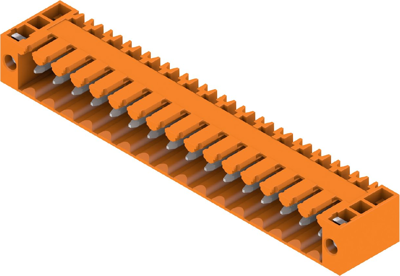

Pin header, 16 pole, pitch 3.5 mm, angled, orange, 1618190000
Order No.: 50P0375
EAN: 4008190117412
MPN:
1618190000
SL 3.50/16/90F 4.5 SN OR BX
Unit Price (€ / pc.)
5.1289 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
5.13 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1289 €
10 pcs.
4.6172 €
50 pcs.
4.3197 €
100 pcs.
4.0698 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1618190000, Weidmüller
PCB plug-in connector, male header, Flange, THT solder connection, 3.50 mm, Number of poles: 16, 90°, Solder pin length (l): 4.5 mm, tinned, orange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 16 pole | |
| Grid | 3.5 mm | |
| Connection | solder connection | |
| Orientation | angled | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 17 A | |
| Number of rows | 1 | |
| Colour | orange |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
