2436210000 | Weidmüller
LED light, 7.5 W, 24 V, 711 lm, 6500 K, 40°, 2436210000
Order No.: 53P1211
EAN: 4050118448306
MPN:
2436210000
WIL-STANDARD-0.3-SCREW-SW-WHI
Unit Price (€ / pc.)
132.5779 € *
Available in 6 Days: 5 pcs. - if ordered today

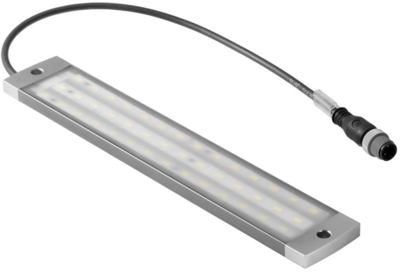

Led lamp, 2436210000, Weidmüller
The cool white LED lamp with 24 VDC with very high luminous efficacy and high lifespan (greater 60 000h). Very robust construction, by full potting and metal housing - waterproof (IP67). Due to its 6500K light color (daylight) suitable for the various applications. Optionally easily connectable with M12 connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Width | 240 mm | |
| Colour | white | |
| Rated voltage | 24 V | |
| Height | 8 mm | |
| Colour temperature | 6500 K | |
| max. operating temperature | 60 °C | |
| min. operating temperature | -20 °C | |
| Radiation angle | 40 ° | |
| Power | 7.5 W | |
| Version | LED light | |
| Luminous flux | 711 lm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
