8689830000 | Weidmüller

Name: Relay, 2 Form C (NO/NC), 230 V (AC), 19465 Ω, 24 A, 240 V (AC), monostable, 8689830000
Brand: Weidmüller
SKU: 53P4694
Price: 14.45 EUR
Availability: OutOfStock

Relay, 2 Form C (NO/NC), 230 V (AC), 19465 Ω, 24 A, 240 V (AC), monostable, 8689830000

Order No.: 53P4694

EAN: 4032248360505

MPN:

8689830000

RCM270T30

Series: RIDERSERIES RCM

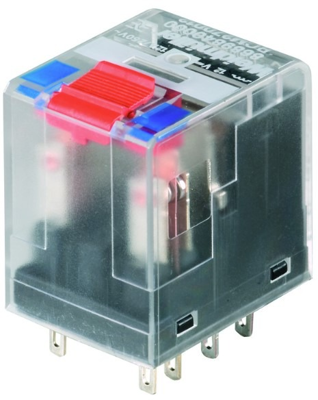

Image may differ

Key Specification:

Contact type 2 Form C (NO/NC)

switching current 24 A

Coil voltage (AC) 230 V

Coil resistance 19465 Ω

Show 71 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

14.4466 € *

Available: 0 pcs.

Available in 6 Days: 50 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

14.45 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Industrial relay, 8689830000, WEIDMÜLLER

Individual relay is the right choice for the reliable separation of input and output signals in industrial automation. This high-quality universal relay with many sophisticated details and international approvals in different designs for industrial applications. The optional status LED plus test button make servicing easier.

Features

Plug-in connection
Protection degree: IP20
Overvoltage category III
With a test button
With LED indicator

Technical specifications

	Connection	plug-in connection
	Contact type	2 Form C (NO/NC)
	Contact material	AgNi
	Switching Voltage (AC)	240 V
	switching current	24 A
	Coil voltage (AC)	230 V
	Coil type	monostable
	Coil resistance	19465 Ω

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	AT
Customs tariff number	85364900

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
