1939640000 | Weidmüller

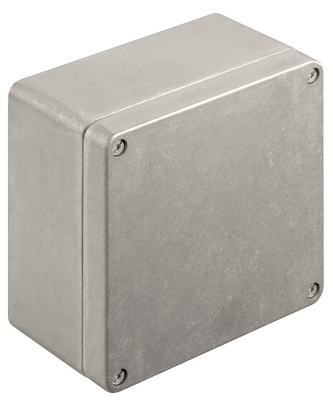

Aluminum enclosure, (L x W x H) 81 x 120 x 122 mm, gray (RAL 7001), IP67, 1939640000
Unit Price (€ / pc.)
85.2992 € *
Standard delivery time from the manufacturer is: 14 Weeks
Aluminium enclosure, 1939640000, Weidmüller
The 1939640000 is suitable for use in an extremely wide range of different areas. Various components can be installed inside the enclosures, and will benefit in particular from the high temperature resistance, excellent IP protection and the good impact resistance.
Features
- Mounting holes outside of the gasket area
- Alloy is resistant to salt water
- Standardised distributor enclosures with threaded holes and a variety of terminal configurations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 122 mm | |
| Colour | gray | |
| Width | 120 mm | |
| Degree of protection (IP) | IP67 | |
| RAL number | 7001 | |
| Material | aluminum | |
| Length | 81 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
