1421600000 | Weidmüller

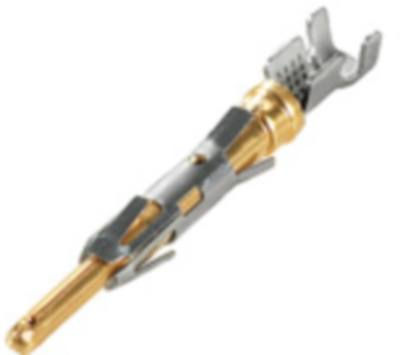

Pin contact, 0.14-0.25 mm², AWG 26-24, crimp connection, tin-plated, 1421600000
Order No.: 51P3082
EAN: 4008190009939
MPN:
1421600000
CS1,6E26-24 SN I1,4
Unit Price (€ / pc.)
0.8211 € *
Available: 0 pcs.
Available in 6 Days: 1,250 pcs.
Leadtime: On Request **
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
2 pcs.
0.8211 €
1250 pcs.
0.7378 €
6250 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin contact, 1421600000, Weidmüller
The 1421600000 is a pin contact standard. This product enables custom adaptations to the specific requirements of your applications.
Features
- Safe centring of the contacts using the three-segment pin tips
- High contact reliability using four defined contact points
- Locking clasp in the cantilever spring for a secure mount of the contacts in the housing
- Pin contacts with two lengths to implement leading-pin contacts
Technical specifications
| Version | pin contact | |
| AWG cross-section | AWG 26-24 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| contact surface | tin-plated | |
| Cable cross-section | 0.14-0.25 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
