1219550000 | Weidmüller

Relay coupler 2 Form A (N/O), 303 Ω, 25 A, 24 V (DC), 1219550000

Order No.: 50P8860
EAN: 4032248999040
MPN:
1219550000
PWR276024L
Series: D-SERIES PWR

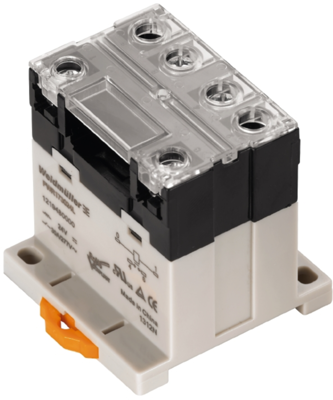

1219550000 Weidmüller Coupling Relays Image 1

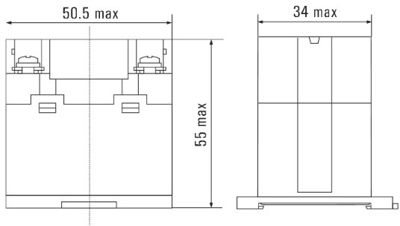

1219550000 Weidmüller Coupling Relays Image 2
Image may differ
Unit Price (€ / pc.)
22.5148 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
22.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
22.5148 €

Relay coupler, 1219550000, Weidmüller

Relay coupler, 24 VDC, LED green, 2 NO contacts (AgSnO2), 277 VAC, 25 A, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.

Technical specifications
Rated voltage (DC) 24 V
Contact type 2 Form A (N/O)
Connection screw connection
Status display LED, green
Coil resistance 303 Ω
Version relay coupler
Rated current 25 A
Contact material AgSnO2
Degree of protection (IP) IP10
Logistics
Country of origin CN
Customs tariff number 85364190
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
