1219470000 | Weidmüller
Relay coupler 1 Form A (N/O), 75 Ω, 30 A, 12 V (DC), 1219470000
Unit Price (€ / pc.)
16.5053 € *
Available: 0 pcs.
Available in 8 Days: 50 pcs.
Leadtime: On Request **

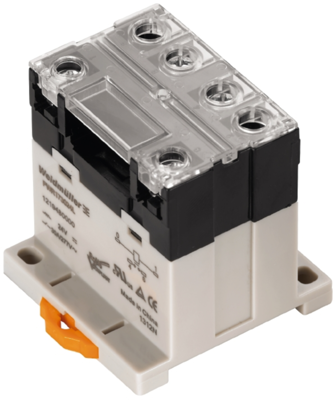

Relay coupler, 1219470000, Weidmüller
Relay coupler, 12 VDC, LED green, 1 NO contact (AgSnO2), 277 VAC, 30 A, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Connection | screw connection | |
| Version | Relay coupler | |
| Contact type | 1 Form A (N/O) | |
| Contact material | AgSnO2 | |
| Rated voltage (DC) | 12 V | |
| Rated current | 30 A | |
| Degree of protection (IP) | IP10 | |
| Coil resistance | 75 Ω | |
| Status display | LED, green |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364190 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
