1219480000 | Weidmüller
Relay coupler 1 Form A (N/O), 303 Ω, 30 A, 24 V (DC), 1219480000
Unit Price (€ / pc.)
17.0051 € *
Available in 6 Days: 50 pcs. - if ordered today

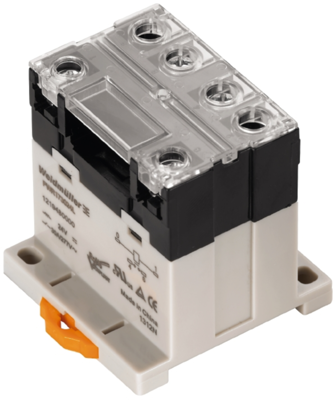

Relay coupler, 1219480000, Weidmüller
Relay coupler, 24 VDC, LED green, 1 NO contact (AgSnO2), 277 VAC, 30 A, Relay coupler as mounted assembly consisting of plug-in relay and plug-in socket. Control and load circuit are galvanically isolated.
Technical specifications
| Status display | LED, green | |
| Rated voltage (DC) | 24 V | |
| Connection | screw connection | |
| Rated current | 30 A | |
| Contact material | AgSnO2 | |
| Contact type | 1 Form A (N/O) | |
| Version | relay coupler | |
| Degree of protection (IP) | IP10 | |
| Coil resistance | 303 Ω |
Download
Logistics
| Customs tariff number | 85364190 |
| Country of origin | CN |
Compliance
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
