WAGO

289-557 | WAGO

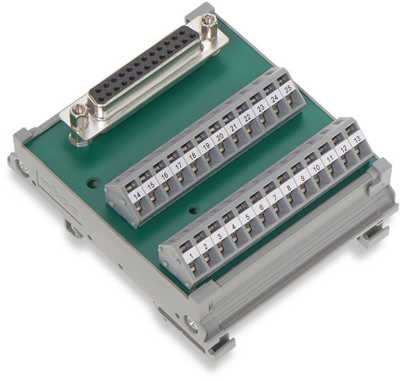

Transfer module, 25 pole, 2 A, 125 V, 289-557

Order No.:  09H8264
MPN:
289-557
Series:  289
EAN: 4045454432683
WAGO
default L
front L
default S
front S
Images may differ
Unit Price (€ / pc.)
80.2417 € *
Available: 3 pcs.
Leadtime: 6 Weeks **
Total Price:
80.24 € *
Quantity
Price per unit*
1 pcs.
80.2417 €
5 pcs.
74.6130 €
15 pcs.
69.3889 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description

Interface modules for TS 35 mounting rails with subminiature-D female connector, type 289-.

For mating pin headers with solder terminals, with mounting socket and perpendicular wire entrance from the front, Clamping range: 0.08 to 2.5 mm². Operating voltage: 125 VUC. Rated current: 2 A. Rated voltage to VDE 0110 Part 1/4.97, IEC 60664-1: 125 V/0.8 kV/2. Connector contacts: gold-plated. Contact resistance: 10 mohm. Performance class: 2/200 insertion cycles. Dimensions including the mounting socket (WxH): 85x34 mm (H measured from top edge of the mounting rail). Terminal color: gray.

Technical attributes (type, number of poles, grid, dimension L): 289-557, 25-pole, L 72 mm

Technical specifications
Connection Cage clamp connection/Solder conection
Version transfer module
Width 72 mm
Height 34 mm
Length 85 mm
Rated voltage 125 V
Rated current 2 A
Pin number 25 pole
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
