289-457 | WAGO
Transfer module, 25 pole, 1 A, 50 V, 289-457
Unit Price (€ / pc.)
70.2100 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
70.21 € *
Price list
Quantity
Price per unit*
1 pcs.
70.2100 €
5 pcs.
65.3072 €
10 pcs.
60.7257 €
*incl. VAT plus shipping costs
Subject to prior sale

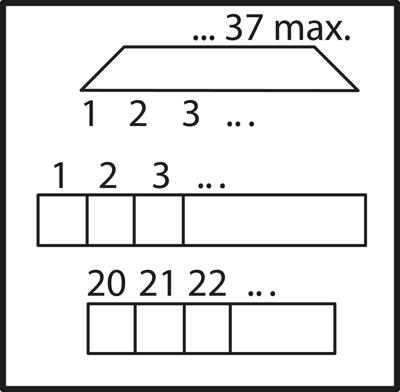

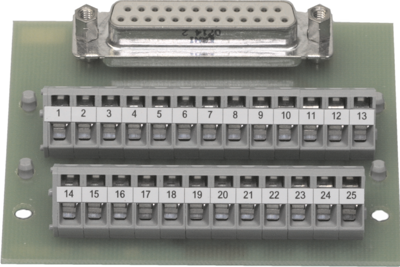

Interface module for TS 35 mounting rails with subminiature-D female connector, Wago 289-457
For mating male connectors with solder terminals with mounting socket and perpendicular wire entrance from the front.
Number of poles: 25-pole
Clamping range: 0.08 to 2.5 mm²,
Operating voltage: 125 VUC
Rated current: 1 A
Rated voltage to VDE 0110 Part 1/4.97, IEC 60664-1: 50 V/0.8 kV/2
Connector contacts: gold-plated
Contact resistance: 10 mohm
Performance class: 2/200 insertion cycles
Dimensions including the mounting sockets (WxHxL): 63.5x19.0x79 mm (H measured from top edge of the mounting rail)
Terminal color: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | transfer module | |
| Pin number | 25 pole | |
| Rated current | 1 A | |
| Rated voltage | 50 V | |
| Length | 63.5 mm | |
| Width | 79 mm | |
| Height | 19 mm | |
| Connection | cage clamp connection/solder conection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
