773-498 | WAGO

Cable connector, 8 pole, 2.5 mm², clamping points: 8, gray, push-in wire connection, 24 A, 773-498

Order No.: 45P8238
EAN: 4055143026635
MPN:
773-498
Series: 773

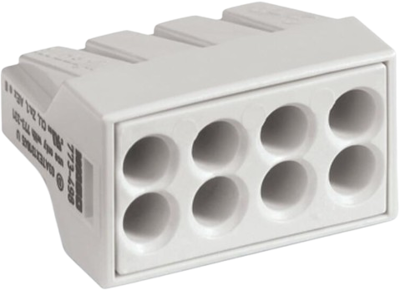

773-498 WAGO Terminal Blocks Image 1
773-498 WAGO Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.7854 €
50 pcs.
0.7021 €
100 pcs.
0.6307 €
500 pcs.
0.5593 €
*incl. VAT plus shipping costs
**Subject to prior sale

Splicing connector, 773-498, WAGO

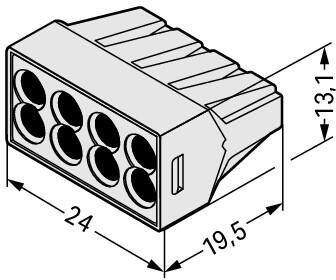

Push wire splicing connector (item number 773-498) simplifies electrical installations. This PUSH WIRE connector ensures safe and quick connections in both surface-mounted and flush-mounted junction boxes in any building, regardless of installation complexity. Conductors can only be connected to push wire splicing connector if their strip length is 12 mm. This product features conductor terminals and utilizes PUSH WIRE. Our proven PUSH WIRE connection offers the fastest method for clamping conductors. It utilizes the conductor's stiffness to overcome the clamping spring's contact force. Dimensions: 24 x 13.1 x 19.5 mm (width x height x depth). Push wire splicing connector is suitable for conductor cross sections ranging from 0.75 mm² to 2.5 mm². Tin is used for coating the contact surfaces.

Technical specifications
Version connection clamp
Connection push-in wire connection
Rated current 24 A
Pin number 8 pole
Colour gray
Number of terminals 8
Cable cross-section 2.5 mm²
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
