773-492 | WAGO
Junction box terminal, 2 pole, 0.75-2.5 mm², clamping points: 2, light gray, push-in wire connection, 24 A, 773-492
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale

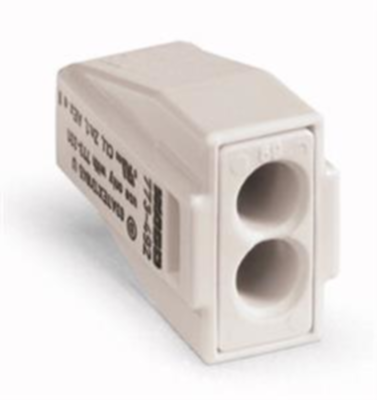

Connector, 773-492, WAGO
PUSH WIRE connector for junction boxes, for solid and stranded conductors, for Ex applications, maximum 2.5 mm², 2-conductor, light gray housing, light gray cover, Operating temperature (maximum): 105 °C, 2,50 mm², light gray.
Technical specifications
| Version | junction box terminal | |
| Pin number | 2 pole | |
| Cable cross-section | 0.75-2.5 mm² | |
| Number of terminals | 2 | |
| Colour | light gray | |
| Connection | push-in wire connection | |
| Rated current | 24 A | |
| AWG cross-section | AWG 18-14 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
