294-8215 | WAGO
Mains connection terminal, 5 pole, 0.5-2.5 mm², clamping points: 4, white, push-in wire connection, 24 A
Unit Price (€ / pc.)
2.0468 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Connector, 294-8215, WAGO
Lighting connector, push-button, external, for Linect, with snap-in ground contact, L3-L2-L1-PE-N, 5-pole, Code A, lighting side: for solid conductors, installation side: for all conductor types, maximum 2.5 mm², surrounding air temperature: maximum 85 °C (T85), 2,50 mm², white.
Features
- Universal conductor termination (AWG, metric)

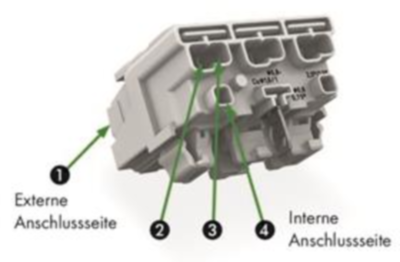

- Third contact located at the bottom of internal connection end
- Strain relief plate can be retrofitted
Technical specifications
| Connection | push-in wire connection | |
| Number of terminals | 4 | |
| Version | mains connection terminal | |
| AWG cross-section | AWG 18-12 | |
| Colour | white | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 5 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
