294-5025 | WAGO

Mains connection terminal, 5 pole, 0.5-2.5 mm², clamping points: 25, white, push-in wire connection, 24 A, 294-5025

Order No.: 44P1535
EAN: 4050821098218
MPN:
294-5025
Series: 294
WAGO

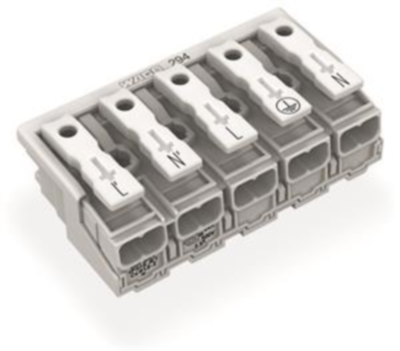

294-5025 WAGO Terminal Blocks Image 1
294-5025 WAGO Terminal Blocks Image 2
294-5025 WAGO Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
1.8683 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.8683 €

Connector, 294-5025, WAGO

Lighting connector, push-button, external, without ground contact, L´-N´-L-PE-N, 5-pole, lighting side: for solid conductors, installation side: for all conductor types, maximum 2.5 mm², surrounding air temperature: maximum 85 °C (T85), 2,50 mm², white.

Features

  • Universal conductor termination (AWG, metric)

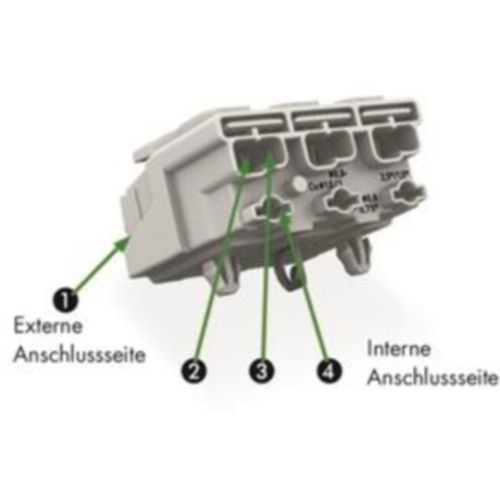

  • Third contact located at the bottom of internal connection end
  • Strain relief plate can be retrofitted
Technical specifications
Connection push-in wire connection
Number of terminals 25
Version mains connection terminal
AWG cross-section AWG 18-16
Colour white
Cable cross-section 0.5-2.5 mm²
Rated current 24 A
Pin number 5 pole
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
