294-4413 | WAGO
Mains connection terminal, 3 pole, 0.5-2.5 mm², clamping points: 15, white, push-in wire connection, 24 A
Unit Price (€ / pc.)
1.3090 € *
Available: 0 pcs.
Leadtime: On Request **

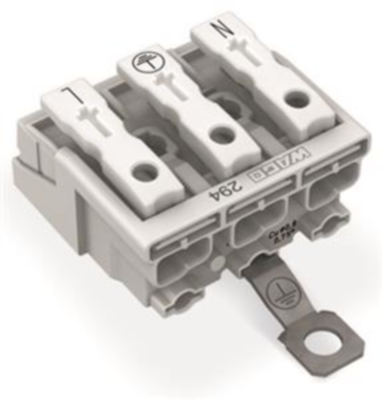

Connector, 294-4413, WAGO
Lighting connector, push-button, external, with screw-type ground contact, 3-pole, lighting side: for solid conductors, installation side: for all conductor types, maximum 2.5 mm², surrounding air temperature: maximum 85 °C (T85), 2,50 mm², white.
Features
- Universal conductor termination (AWG, metric)

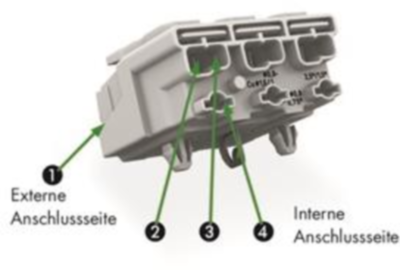

- Third contact located at the bottom of internal connection end
- Strain relief plate can be retrofitted
Technical specifications
| Connection | push-in wire connection | |
| Number of terminals | 15 | |
| Version | mains connection terminal | |
| AWG cross-section | AWG 18-14 | |
| Colour | white | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 3 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
