224-101 | WAGO

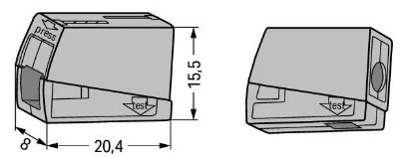

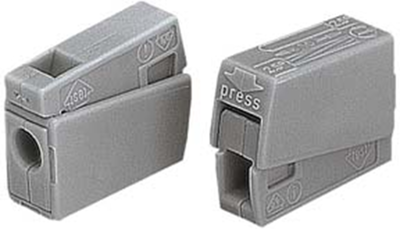

Connection terminal, 12 pole, 1.0-2.5 mm², clamping points: 2, gray, cage clamp, 24 A
As a private customer, you can buy this item as soon as we have it back in stock.
Lighting connectors, type Wago 224.
Suitable for use as luminary terminal for flexible or solid wire conductors from 0.5 to 2.5 mm². Cage clamp termination of the wire by pressing down the pusher mechanism with the finger to open the terminal; Rated voltage to EN: 400 V. Rated current: 24 A. Operating temperatures: to +105 °C. Certifications: UL, CCA, CSA, VDE etc.
Technical attributes (type, terminating range, color): 224–101, 1.0 to 2.5 mm², gray
Technical specifications
| Connection | cage clamp | |
| Number of terminals | 2 | |
| Version | connection terminal | |
| AWG cross-section | AWG 24-12 | |
| Colour | gray | |
| Cable cross-section | 1.0-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 12 pole |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
