221-2411 | WAGO
Through connector, 2 pole, 0.2-4.0 mm², clamping points: 2, transparent, spring-clamp connection, 32 A, 221-2411
Unit Price (€ / pc.)
0.5593 € *
Available: 553 pcs.

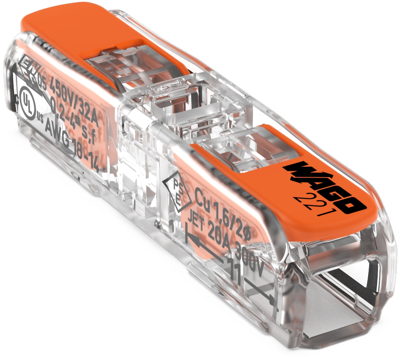

Connector, 221-2411, WAGO
Inline splicing connector with levers, for all conductor types, maximum 4 mm², 2-conductor, transparent housing, transparent cover, surrounding air temperature: maximum 85 °C (T85), 4,00 mm², transparent.
Features
- Slim design saves space in tight areas
- Tool-free connection and disconnection thanks to convenient lever technology
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | through connector | |
| Pin number | 2 pole | |
| Cable cross-section | 0.2-4.0 mm² | |
| Number of terminals | 2 | |
| Colour | transparent | |
| Connection | spring-clamp connection | |
| Rated current | 32 A | |
| AWG cross-section | AWG 20-14 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
