880-834 | WAGO
4-wire feed-through terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 20 A, 8 kV, blue, 880-834
Unit Price (€ / pc.)
2.8679 € *
Available: 0 pcs.
Leadtime: On Request **

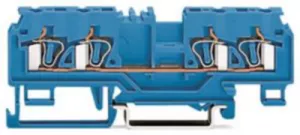

4-Conductor through terminal block, 880-834, Wago
4-conductor feed-through terminal without shield bus with test opening for test plugs Ø 2 mm and Ø 2.3 mm max. insulation diameter 4.4 mm suitable for Ex i applications blue
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 4 | |
| Version | 4-wire feed-through terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 5 mm | |
| Colour | blue | |
| Height | 87 mm | |
| Length | 29 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 20 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
