870-684 | WAGO

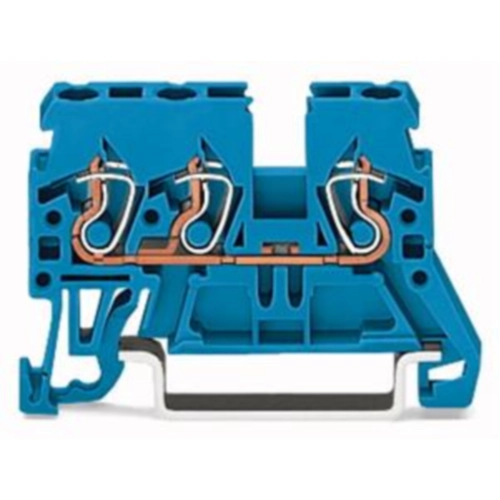

3-wire feed-through terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 24 A, 6 kV, blue, 870-684
Unit Price (€ / pc.)
1.0472 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
0.9401 €
100 pcs.
0.8568 €
*incl. VAT plus shipping costs
**Subject to prior sale
3-Conductor through terminal block, 870-684, Wago
3-conductor through terminal suitable for Ex i applications blue
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 3 | |
| Version | 3-wire feed-through terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | blue | |
| Height | 49 mm | |
| Length | 27.5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
