870-593/281-434 | WAGO
Three level LED terminal, spring-clamp connection, 0.08-2.5 mm², 3 pole, 25 mA, gray, 870-593/281-434
Unit Price (€ / pc.)
6.7354 € *
Available: 0 pcs.
Leadtime: On Request **

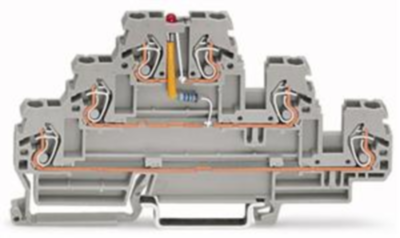

Component terminal block, 870-593/281-434, WAGO

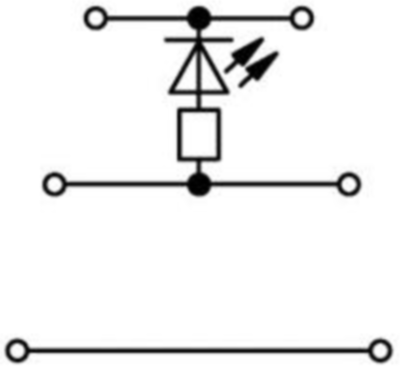

Component terminal block, triple-deck, LED (red), 24 VDC, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 6 | |
| Version | three level LED terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 24 V | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 106 mm | |
| Length | 52.5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 25 mA | |
| Pin number | 3 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
