1-wire N disconnect terminal, cage clamp, 6-35 mm², 125 A, 6 kV, blue, 785-613
NCNR (non cancelable / non returnable)

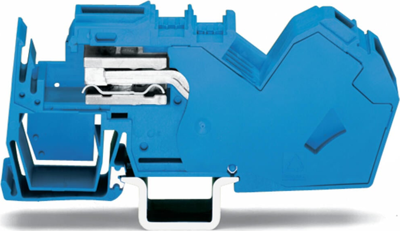

N-disconnect terminal block, 785-613, WAGO
This N-disconnect terminal block is designed for simple and secure connections. Conductors should only be connected to this N-disconnect terminal block if their strip length is 23 mm. This product features conductor terminals and utilizes CAGE CLAMP. The highly-rated and maintenance-free CAGE CLAMP connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don't need to crimp ferrules. This N-disconnect terminal block is suitable for conductor cross sections ranging from 6 mm² to 35 mm². It comes with one level and a clamping point that you can use to connect a single potential. The blue housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rail.
| Filter | Property | Value |
|---|---|---|
| Version | 1-wire N disconnect terminal | |
| Number of terminals | 1 | |
| Cable cross-section | 6-35 mm² | |
| AWG cross-section | AWG 8 to 2 | |
| Rated surge voltage | 6 kV | |
| Rated current | 125 A | |
| Rated Voltage | 400 V | |
| Degree of soiling | 3 | |

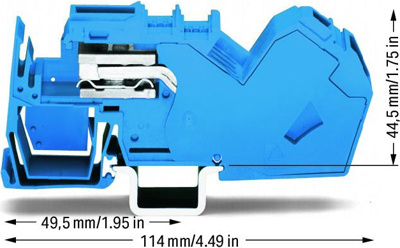

| Width | 16 mm | |
| Height | 116.5 mm | |
| Connection | cage clamp | |
| Colour | blue |
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | DE |
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
