783-613 | WAGO
1-wire N disconnect terminal, cage clamp, 0.2-16 mm², 68 A, 6 kV, blue, 783-613
Unit Price (€ / pc.)
7.3185 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3185 €
10 pcs.
6.8068 €
50 pcs.
6.2594 €
100 pcs.
5.7001 €
*incl. VAT plus shipping costs
Subject to prior sale

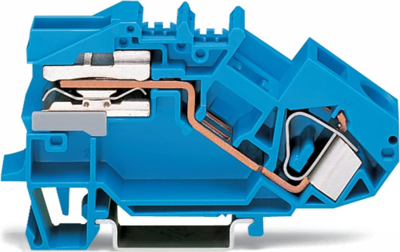

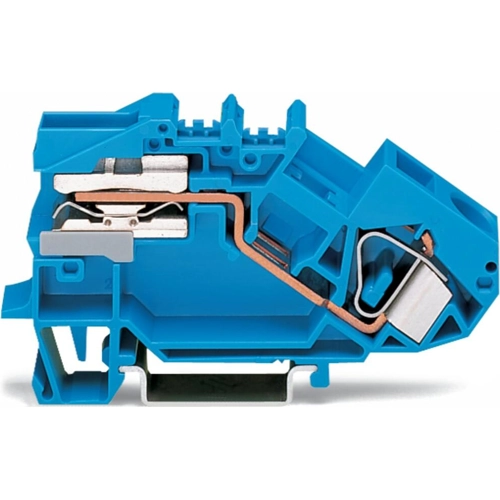

N-disconnect terminal block, 783-613, WAGO
Connecting conductor is quick and easy with this N-disconnect terminal block. Ensure that the strip lengths are between 16 mm and 17 mm when connecting conductors to this N-disconnect terminal block. This product features conductor terminals and utilizes CAGE CLAMP. The tried-and-tested universal connection known as CAGE CLAMP is the industry standard for connection technology and electrical interconnections. This N-disconnect terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 16 mm². It has one level. You can connect a single potential using one clamping point. The blue housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rail.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 to 6 | |
| Rated current | 68 A | |
| Number of terminals | 1 | |
| Height | 88.5 mm | |
| Colour | blue | |
| Rated surge voltage | 6 kV | |
| Width | 12 mm | |
| Degree of soiling | 3 | |
| Connection | cage clamp | |
| Version | 1-wire N disconnect terminal | |
| Rated Voltage | 400 V | |
| Cable cross-section | 0.2-16 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
