780-992 | WAGO
2-wire feed-through terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 23 A, light gray, 780-992
Unit Price (€ / pc.)
1.5232 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
1.4042 €
50 pcs.
1.2733 €
100 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale

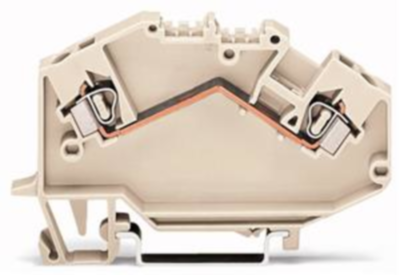

Through terminal block, 780-992, Wago
2-wire through terminal block Ex e II suitable for applications Ex e II light gray
Technical specifications
| Height | 77 mm | |
| Width | 5 mm | |
| Version | 2-wire feed-through terminal | |
| Connection | spring-clamp connection | |
| Rated current | 23 A | |
| Pin number | 1 pole | |
| Colour | light gray | |
| Number of terminals | 2 | |
| AWG cross-section | AWG 28 to 12 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated Voltage | 750 V | |
| Length | 43.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
