780-613 | WAGO
1-wire N disconnect terminal, cage clamp, 0.08-2.5 mm², 24 A, 6 kV, blue, 780-613
NCNR (non cancelable / non returnable)

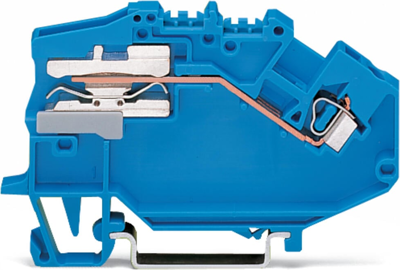

N-disconnect terminal block, 780-613, WAGO
Connecting conductor is quick and easy with this N-disconnect terminal block. Ensure that the strip lengths are between 8 mm and 9 mm when connecting conductors to this N-disconnect terminal block. Featuring conductor terminals along with CAGE CLAMP, this product delivers reliable performance. CAGE CLAMP connection offers a secure and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. This N-disconnect terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm². It has one level. The single potential can connect using one clamping point The blue housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rail.
| Filter | Property | Value |
|---|---|---|
| Version | 1-wire N disconnect terminal | |
| Number of terminals | 1 | |
| Cable cross-section | 0.08-2.5 mm² | |
| AWG cross-section | AWG 28 to 12 | |
| Rated surge voltage | 6 kV | |
| Rated current | 24 A | |
| Rated Voltage | 400 V | |
| Degree of soiling | 3 | |

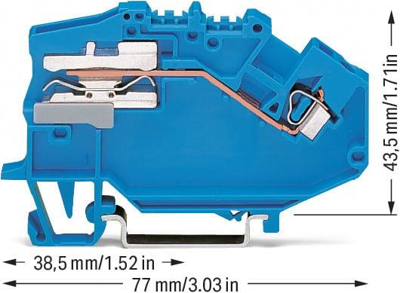

| Width | 5 mm | |
| Height | 77 mm | |
| Connection | cage clamp | |
| Colour | blue |
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85365080 |
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
