727-123/004-000 | WAGO

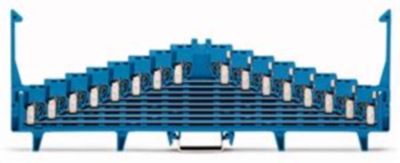

8-level shunting terminal, spring-clamp connection, 0.08-1.5 mm², 8 pole, 10 A, 4 kV, blue, 727-123/004-000
Unit Price (€ / pc.)
22.9075 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
8-Level terminal block, 727-123/004-000, Wago
8-tier shunting terminal with snap-in hook imprint: h-g-f-e-d-c-b-a--a-b-c-d-e-f-g-h 8 x pair-wise connection of the clamping points located on the same tier level for applications Ex i suitable according to EN 60715 blue
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 32 | |
| Version | 8-level shunting terminal | |
| AWG cross-section | AWG 28 to 16 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Width | 7.62 mm | |
| Colour | blue | |
| Height | 226 mm | |
| Length | 76 mm | |
| Cable cross-section | 0.08-1.5 mm² | |
| Rated current | 10 A | |
| Pin number | 8 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
