285-637/999-950 | WAGO

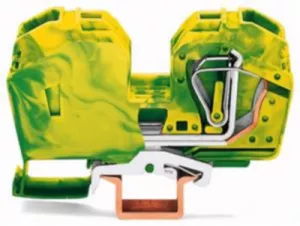

2-wire protective earth terminal, spring-clamp connection, 6.0-35 mm², 1 pole, 125 A, 8 kV, yellow/green, 285-637/999-950
Unit Price (€ / pc.)
12.3641 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Ground terminal block, 285-637/999-950, Wago
2-conductor protective earth terminal block with integrated termination plate suitable for Ex e II applications green-yellow
Technical specifications
| Version | 2-wire protective earth terminal | |
| Number of terminals | 2 | |
| Pin number | 1 pole | |
| Cable cross-section | 6.0-35 mm² | |
| AWG cross-section | AWG 10 to 2 | |
| Rated surge voltage | 8 kV | |
| Rated current | 125 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 53 mm | |
| Width | 16 mm | |
| Height | 100 mm | |
| Connection | spring-clamp connection | |
| Colour | yellow/green |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
